B3356157

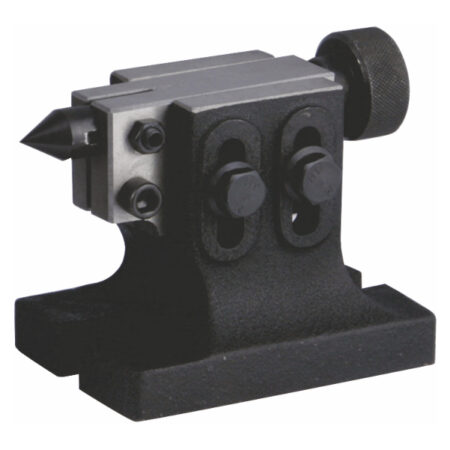

RST 2 ADJUSTABLE TAILSTOCK

0 out of 5

Height Adjustable Tailstock Tailstock Rst 2 *Height of Centres 110-145mm

R2,636.15
Add to basket
Add to wishlist

RST1 ADJUSTABLE TAILSTOCK

0 out of 5

Height Adjustable Tailstock Tailstock Rst 1 *Height of Centres 72-108mm *Suitable for RT 100, RT 150

R2,740.16
Add to basket
Add to wishlist

IT 150 FR RT150 DIVIDING PLATES

0 out of 5

Indirect Dividing Equipment - IT 150 *3 pcs. Indexing Plates. Sector Arm *Angle Shear with Spring Steel Plate *Suitable for RT 100/RT 150

R1,797.80
Add to basket
Add to wishlist

RT150 ROTARY TABLE

0 out of 5

RT 150

Circular dividing table

Technical Specifications

Chucks 150 mm
Construction height 79 mm
Width 156 mm
Length 204 mm
Centre height 102 mm
Slot width 11 mm
Indirect indexing plate yes
Weight 12 kg

Description

Horizontal-vertical circular dividing tables

  • Quality circular dividing tables made of high-quality Meehanite cast
  • Precision bearing
  • Stability even under heavy load
  • Large spindle hole lo clamp longer workpieces
  • Quick-action dividing via locking discs for higher manufacturing speed for mass parts
  • Hardened and ground screw
  • Working table with 360° scaling
  • 1 turn of the handwheel 4° rotation
  • Scaling on the handwheel 2I
  • Possible division via scaled handwheel with vernier
  • Up to 150 pcs. different divisions with indirect dividing plates are available
  • Optional: CNC add-on kit's MK RT1 and MK RT2 to control the horizontal vertical circular dividing tables

R6,203.79
Add to basket
Add to wishlist

THREE AXIS VICE MV3-125

0 out of 5

OPTIMUM Three-axis vices MV3 Horizontal swing movement up to 90° Vertical swing movement up to± 45° Well readable scales for all three axes Hardened and ground clamping jaws, replaceable With turntable, 360° turnable

Description:
Jaw width/height: 125/45 mm
Jaw opening: 97 mm
Total length: 290 mm
Overall height swivel base: 206 mm
Net weight: 26 kg


R5,672.84
Add to basket
Add to wishlist

PARALLEL PACKING PLATES 20PC

0 out of 5

Kit of parallel packing plates 20-pcs. For precision works for parallel mounting of workpieces on the machine, vices, on marking-on plates or machine tools Ground to very high precision of 0.01 mm Thickness 3 mm Length 150 mm Sizes 2 pcs. 13 mm/2 pcs. 16 mm/2 pcs. 19 mm/2 pcs. 22 mm/2 pcs. 25 mm/2 pcs. 8 mm/2 pcs. 31 mm/ 2 pcs. 35 mm/2 pcs. 38 mm/2 pcs. 41 mm

R2,949.75
Add to basket
Add to wishlist

FLOOR STAND MB4

0 out of 5

Steel Base MB4/MH28V *Chip Plates *Solidity and Weightiness Provides for Stability *Dimensions L x W x H: 625 x 415 x 750mm Weight: 54Kg

R9,315.00
Add to basket
Add to wishlist

STAND FOR BF20 MILL MACHINE

0 out of 5

Universal Machine Base BF16/BF20 *Shelf and Chip Tray *Dimensions L x W x H: 500 x 420 x 800mm *Weight: 35Kg

R6,823.24
Add to basket
Add to wishlist
B3352094

COLLECT CHUCK MT4/M16/ER32

0 out of 5

Collet chuck kit MT 4/ ER 32 - M16 Collet chuck 18 collets; Sizes Ø 2 - Ø 20 mm/DIN ISO 15488 Sickle spanner Aluminium case

R5,076.68
Add to basket
Add to wishlist
B3352093

COLLET CHUCK KIT MT3/M12/ER32

0 out of 5

Collet chuck kit MT 3/ ER 32 - M12 Collet chuck 18 collets; Sizes Ø 2 - Ø 20 mm/DIN ISO 15488 Sickle spanner Aluminium case

R4,564.35
Add to basket
Add to wishlist
B3352053

19PCE COLLECT CHUCK MT2 ER32

0 out of 5

Collet chuck kit MT 2/ ER 32 - M10 Collet chuck 18 collets; Sizes Ø 2 - Ø 20 mm/DIN ISO 15488 Sickle spanner Aluminium case

R5,076.68
Add to basket
Add to wishlist

16PC COLLET CHUCK MT2 ER25

0 out of 5

Collet chuck kit MT 2/ ER 25 - M10 Collet chuck 15 collets; Sizes Ø 1.5 - Ø 16 mm/DIN ISO 15488 Sickle spanner Aluminium case

R4,648.19
Add to basket
Add to wishlist
